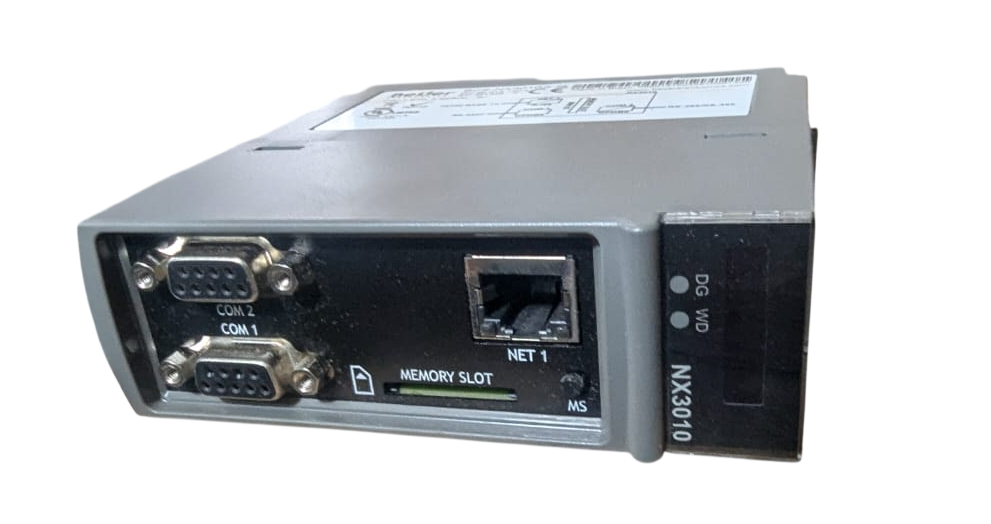

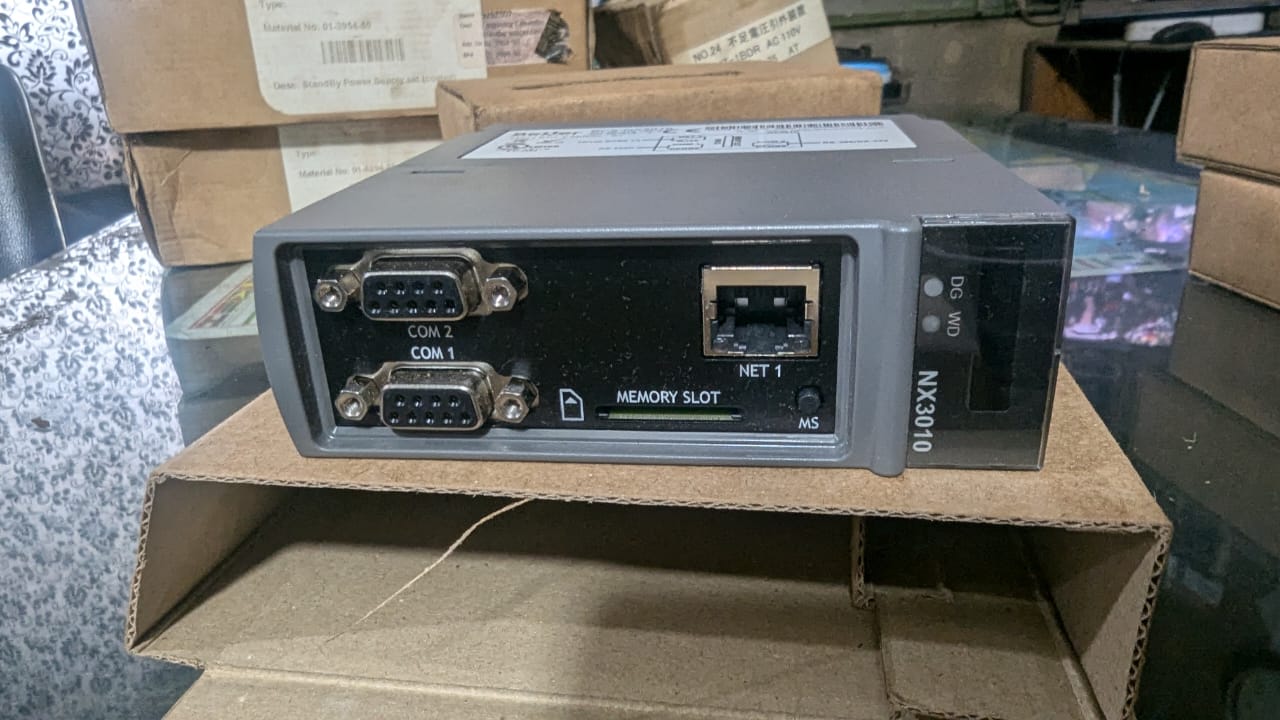

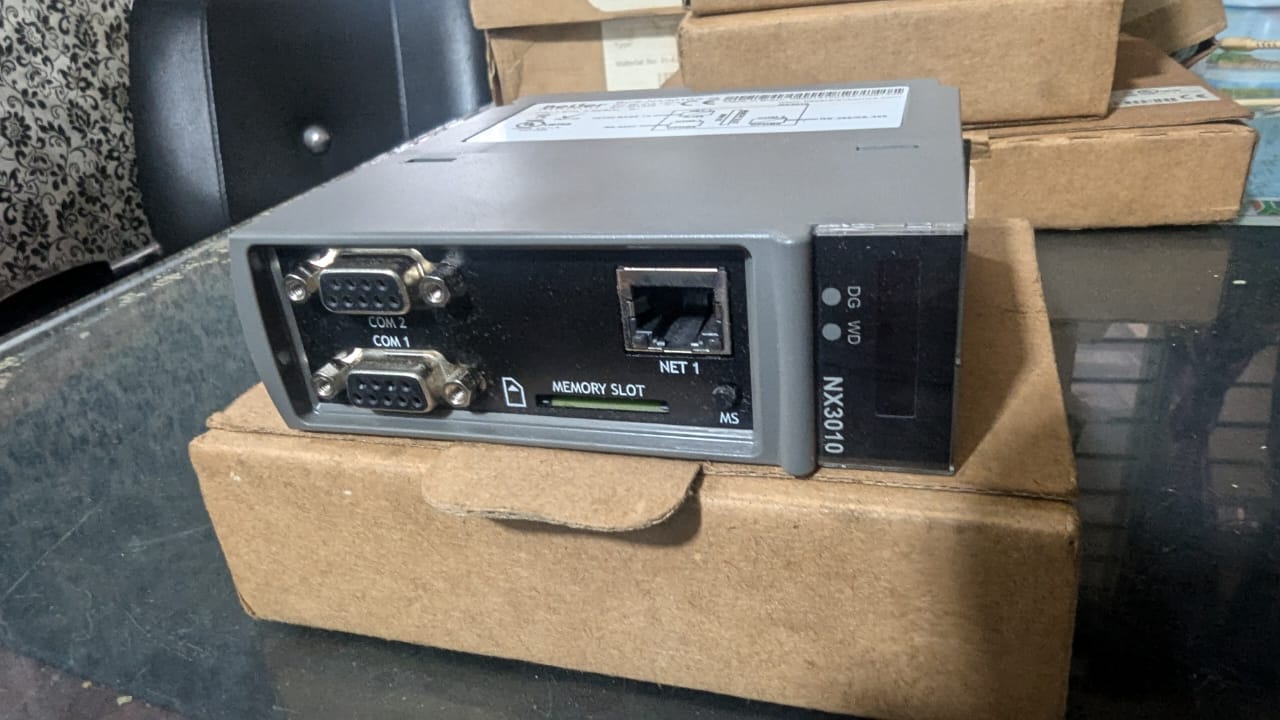

Beijer Electronics BCS-NX3010 PLC (Programmable Logic Controller)

Short Details:

Processing Power: It features a high-speed processor capable of performing 200 PID loops in just 1ms.
Memory: Includes 4MB of application memory and a Memory Slot for a Micro SD card to store logs or project source code.
Connectivity:
- NET 1: One 10/100 BASE-TX Ethernet port.
- COM 1: One RS-232 serial port.
- COM 2: One RS-485/422 serial port.

Description

Product Specifications:

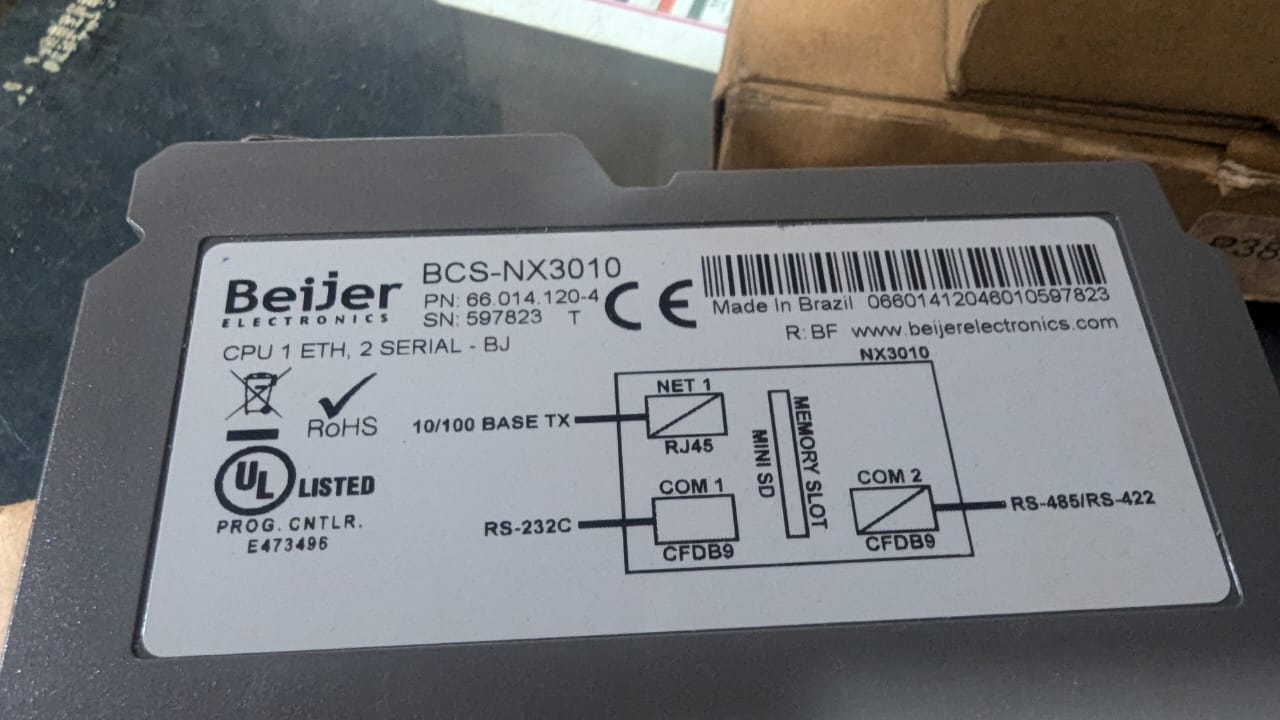

Model: BCS-NX3010
CPU & Memory: Features a high-performance CPU with a dedicated Memory Slot for a Mini SD card to expand storage.
Communication Ports:
- Ethernet (NET 1): One 10/100 BASE TX port using an RJ45 connector for network integration.
- Serial (COM 1): One RS-232C port via a CFDB9 connector.
- Serial (COM 2): One RS-485/RS-422 port via a CFDB9 connector.
Certifications: The unit is UL Listed (E473496) and CE certified, indicating compliance with international safety and quality standards.

Key Features: Supports Hot Swap (replacing modules while powered), has a built-in web server for diagnostics, and is compatible with CODESYS-based programming
CPU & Memory: Features a high-performance CPU with a dedicated Memory Slot for a Mini SD card to expand storage.
Communication Ports:
- Ethernet (NET 1): One 10/100 BASE TX port using an RJ45 connector for network integration.
- Serial (COM 1): One RS-232C port via a CFDB9 connector.
- Serial (COM 2): One RS-485/RS-422 port via a CFDB9 connector.
Certifications: The unit is UL Listed (E473496) and CE certified, indicating compliance with international safety and quality standards.
